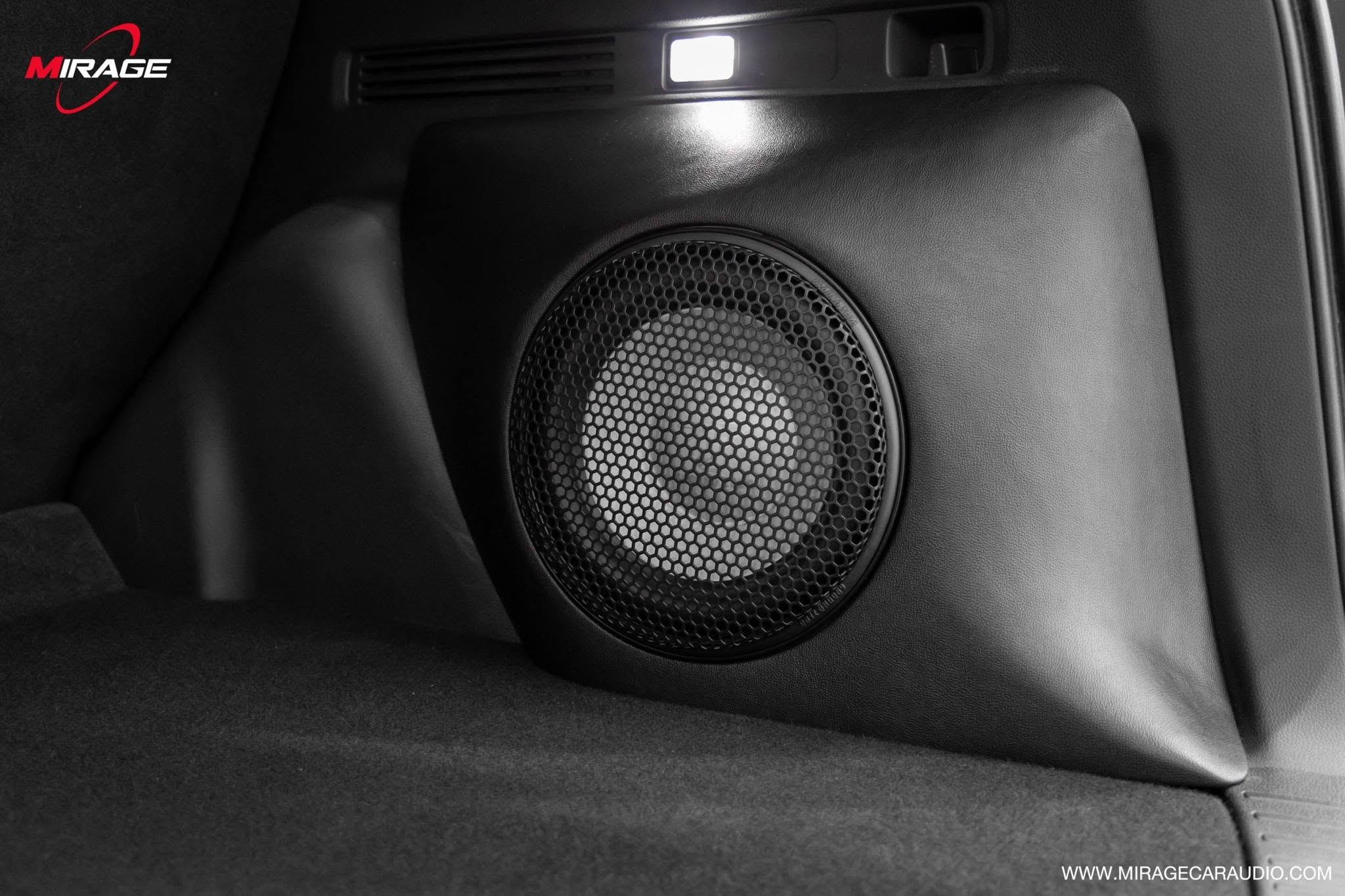

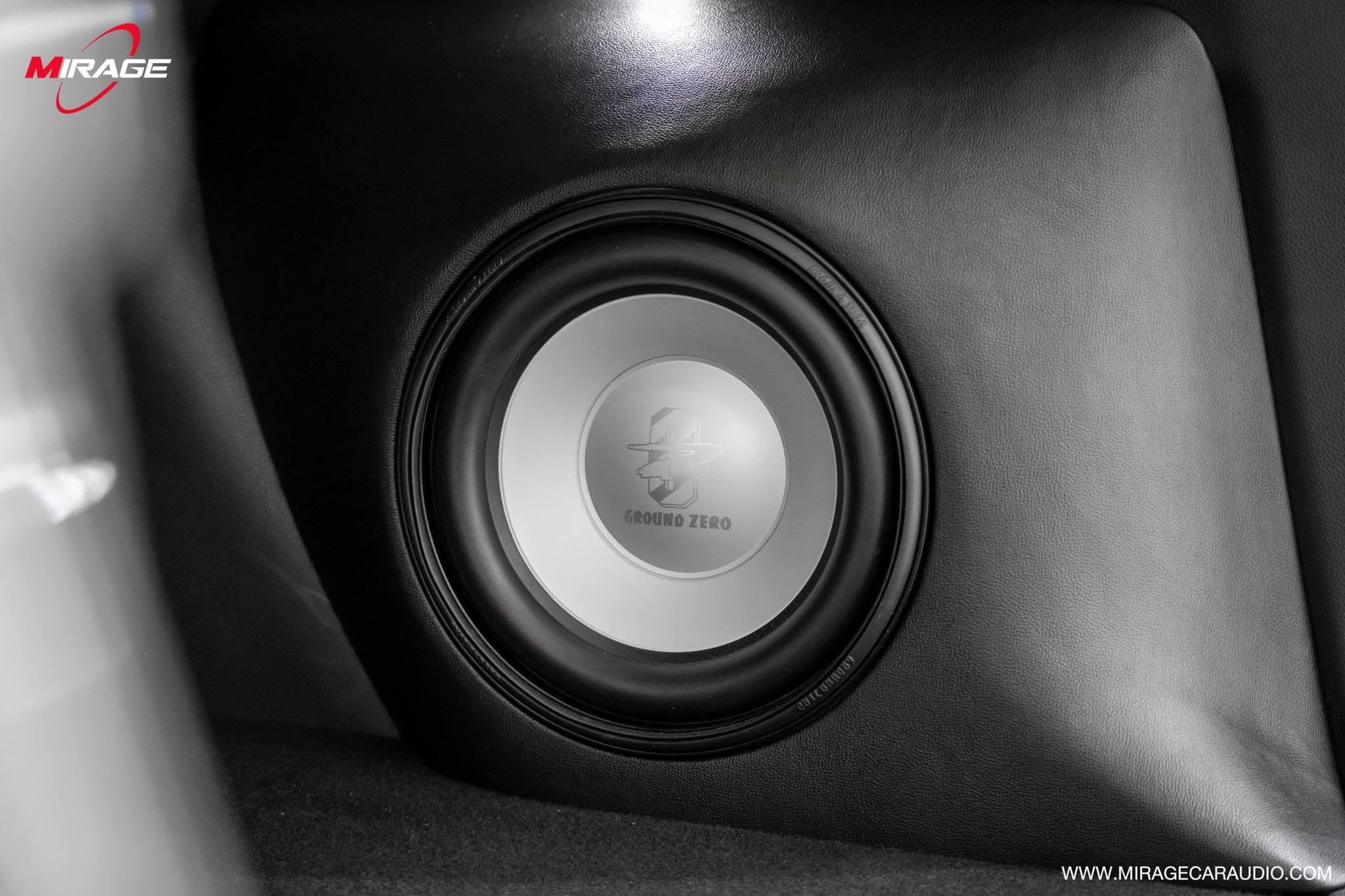

GZPW 10SQ 25 cm / 10″ high end SQ subwoofer Description 700 Watts max 10″ high end SQ subwoofer with aluminum cast basket and aluminum cone 10″ SQ subwoofer Klippel® optimized Aluminum cone SQ rubber surround Solid aluminum cast basket 50 mm / 2″ copper wire voice coil 2-layer spider Aluminum dust cap ราคาขาย 24,000 บาท / ข้าง Additional Information Model High-End SQ Subwoofer Diameter 25 cm / 10" Belastbarkeit (RMS) 400 / 700 Watts Impedanz 2x 2 Ohms Effizienz 83.8 dB Power recommendation 300 – 700 Watts Voice coil 50 mm aluminium Membran Layout Anodized aluminum Max. Excursion (Xmax) 30 mm Mounting Ø 236 mm Einbautiefe 148 mm Resonance frequency (Fs) 34 Hz Overall Qaulity (Qts) 0.58 Äquiv. Luftvolumen (Vas) 23.54 L

" Ground Zero GZPC 40 SQ ลำโพง 2 ทาง Full Range นวัตกรรมใหม่ล่าสุด " ทั้งชุดประกอบไปด้วย 6.5″ high end 2-way component speaker system with aluminum cast basket including 1.6″ full range GZPK 16SQ Made in Germany Alumium-ceramics cone Conex spider Solid aluminum cast basket Universal 4 ohms version GZPF 40SQ 1.6″ high end full range speaker with aluminum cone 40 mm / 1.6″ high end full range speaker Made in Germany Anodized aluminum cone Aluminum cast housing Neodymium motor Gold plated soldering terminal

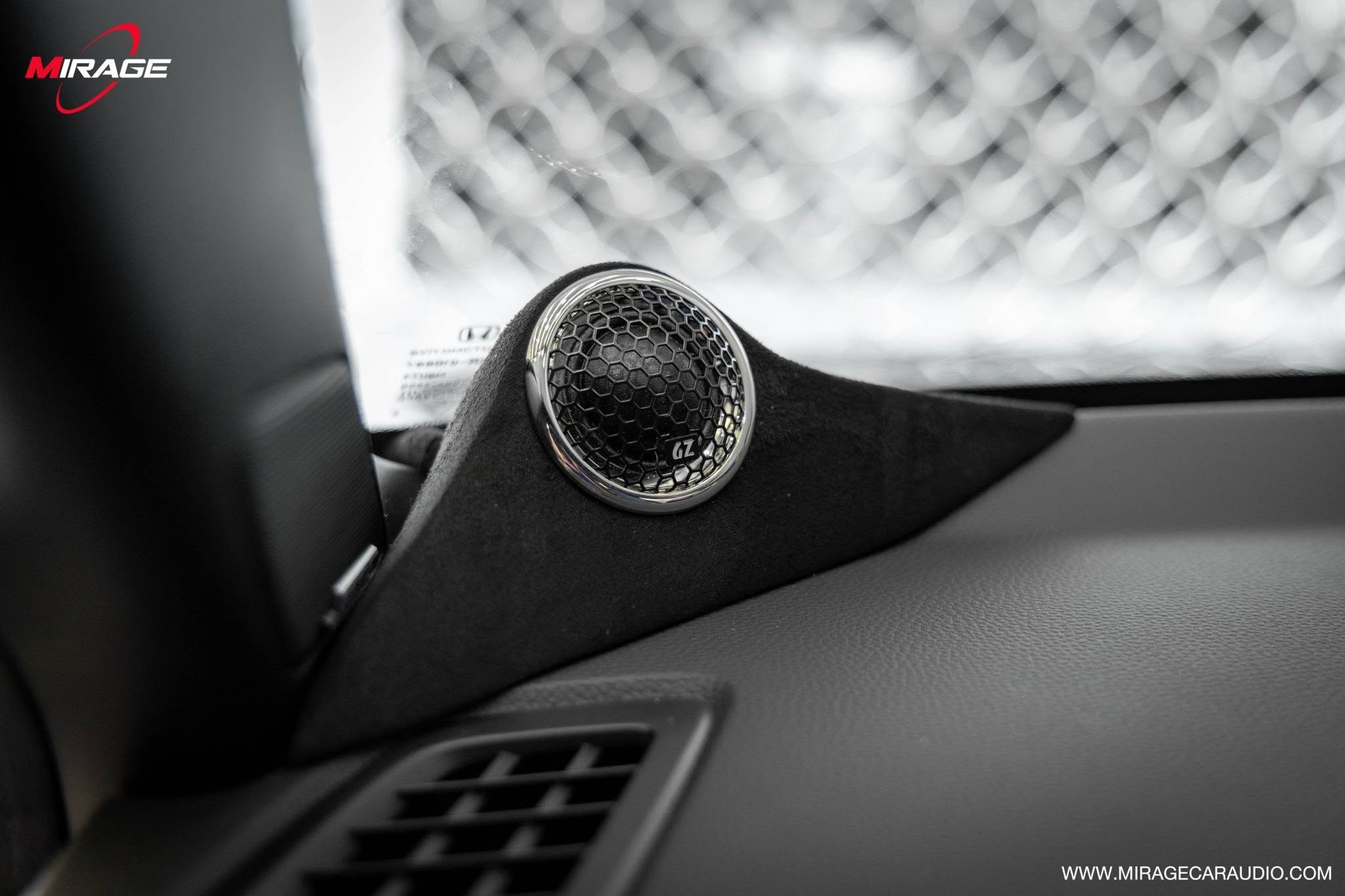

ชุดลำโพง Ground Zero Reference 3 ทาง Gold Edition Limited งาน Handmade Germany ทั้งชุดประกอบไปด้วย 1. GZPT Reference 28 Gold Edition (Tweeter) GZPT Reference 28 Gold Edition 28 mm / 1.1″ high end tweeter – Gold Edition 150 Watts max 1.1″ high end silk dome tweeter with CNC turned and gold plated aluminum housing 25 mm / 1″ high end tweeter Made in Germany Double coated silk dome High power capable copper voice coil Gold plated aluminum housing Damped coupled chamber Wave diffuser Neodymium motor Gold plated screw terminal 1 pair / wooden box --------------------------------------------------- 2. GZPM Reference 80 (Midrange) GZPM Reference 80 80 mm / 3.15″ high end midrange speaker 120 Watts max 3.15″ high end midrange speaker with coated paper cone 80 mm / 3.15″ high end midrange speaker Made in Europe Coated and double pressed paper cone Conex spider Hand made basket with CNC milled parts Linearized motor India rubber surround Incl. protection grill Gold plated soldering terminal 1 pair / wooden box 3.GZMW Reference 180 180 mm high end midwoofer 150 Watts max 180 mm high end midrange speaker with coated paper cone 7″ high end midwoofer Made in Europe 25 mm / 1″ voice coil Conex spider Hand made basket with CNC milled parts Linearized motor Incl. protection grill Gold plated soldering terminal 1 pair / wooden box

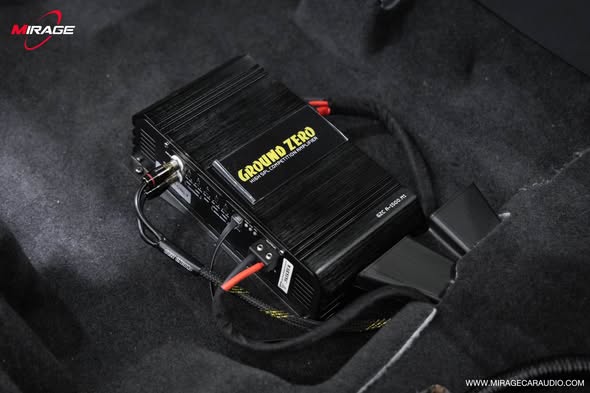

GZDSP 4.80AMP 4-channel amplifier with 8-channel DSP 8-channel DSP 4-channel amplifier with integrated 8-channel DSP, four channel high-level or RCA input, USB connection, digital and AUX input as well as auto-on function 8-channel digital signal processor High-level and line input Realtime setting 32 bit Cirrus Logic Prozessor Windows GUI software Separate 31 band equalizer for each channel Time delay Variable crossover Phase correction Automatic turn-on function for the high level input Model 4-channel amplifier with digital signal processor High resolution compatible yes TOSLINK input 24-bit / 12-96 kHz AUX Anschluss 3.5 mm socket High-Level Audio Mix up to 6 channels Frequency Response 20 Hz – 20 kHz (-3 dB) Signal-to-Noise > 100 dB Eingangsempfindlichkeit 2 – 15 V (high-level) Output power 4x 80 Watts RMS @ 4 Ohm Remote Control optionally Preset Memory 10, 10 Dimensions (b x l x h) 185 x 215 x 42 mm
