GZPF 40SQ 40 mm / 1.6″ high end full range speaker Description 80 Watts max 1.5″ high end full range speaker with aluminum cone 40 mm / 1.6″ high end full range speaker Made in Germany Anodized aluminum cone Aluminum cast housing Neodymium motor Gold plated soldering terminal 1 pair / wooden box Additional Information Model High end full range speaker Diameter 40 mm / 1.6" Belastbarkeit (RMS/max.) 50 / 80 Watts Impedanz 4 Ohms Effizienz 84 dB Frequency Response 500 Hz – 24 kHz Voice coil 16 mm / 0.63" Cone anodized aluminum Einbautiefe 39 mm Resonance frequency (Fs) 400 Hz

GZRC 165.2SQ 165mm 2-Way Component Speaker-System Description Sound Quality speaker system with variable crossover frequency, 3 ohm impedance and 25mm silk dome tweeter Klippel® optimized midwoofer with aluminum cone Nomex spider / rubber surround Copper cap for impedance linearizing Resonance free steel basket Gold-plated terminals 1″ SQ silk dome tweeter with mounting accessories 12 dB/oct. crossover with level adjustment (not for ACT version) 190 watt max. / 120 watt rms 3 Ohms Highlights Mehr Leistung am Verstärker / Radio durch 3 Ohm Technologie Variable Hochtöner Trennfrequenz (High/Low) Sehr hoher Wirkungsgrad (90dB) Großer Seidenkalottenhochtöner (25mm) für feinste Details und klaren Sound Leistungsstarker Tieftöner mit Aluminium-Membrane Technische Daten Durchmesser 165 mm Belastbarkeit (rms/max.) 120 / 190 Watt Impedanz 3 Ohm Wirkungsgrad 90 dB Frequenzgang 35 Hz – 25 kHz Hochtöner GZRT 25SQ Tief-/Mitteltonlautsprecher GZRK 16SQ Einbautiefe 68 mm Übergangsfrequenz 4600 Hz (Hi)

GZDSP 4.80AMP 4-channel amplifier with 8-channel DSP 8-channel DSP 4-channel amplifier with integrated 8-channel DSP, four channel high-level or RCA input, USB connection, digital and AUX input as well as auto-on function 8-channel digital signal processor High-level and line input Realtime setting 32 bit Cirrus Logic Prozessor Windows GUI software Separate 31 band equalizer for each channel Time delay Variable crossover Phase correction Automatic turn-on function for the high level input Model 4-channel amplifier with digital signal processor High resolution compatible yes TOSLINK input 24-bit / 12-96 kHz AUX Anschluss 3.5 mm socket High-Level Audio Mix up to 6 channels Frequency Response 20 Hz – 20 kHz (-3 dB) Signal-to-Noise > 100 dB Eingangsempfindlichkeit 2 – 15 V (high-level) Output power 4x 80 Watts RMS @ 4 Ohm Remote Control optionally Preset Memory 10, 10 Dimensions (b x l x h) 185 x 215 x 42 mm

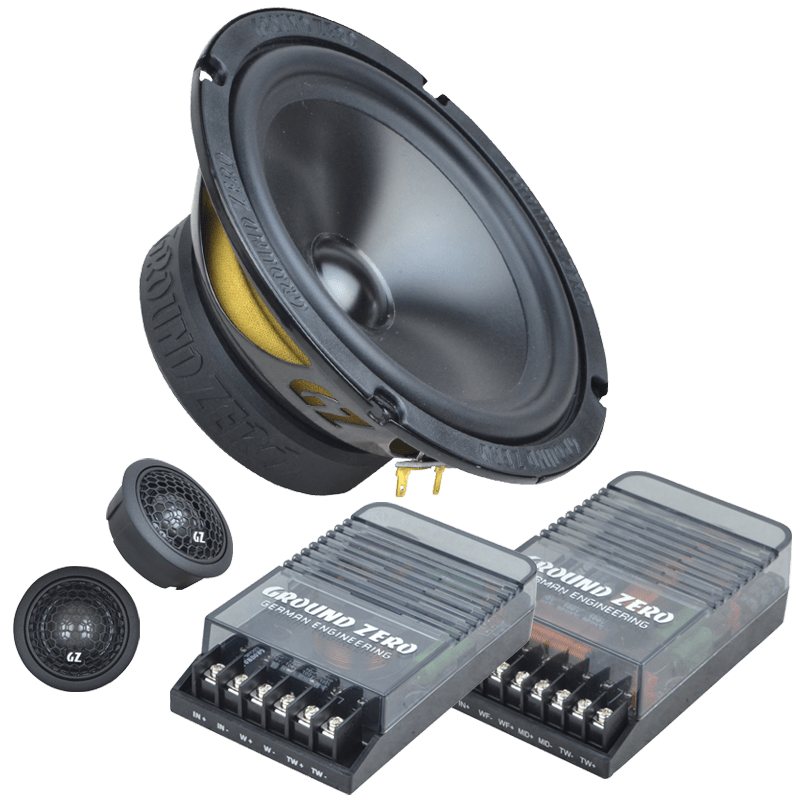

Ground Zero 650SQ II - High quality 2-Way SQ component system - Klippel® optimized midwoofer with WFWC® cone - Resonance free aluminum cast basket - 25 mm / 1" silkdome tweeter with coupled chamber and high power neodymium magnet - Variable 12 dB crossover with high quality Air-coils, MOX-Resistors and MET-Capacitors

GZRW-25XSPL Subwoofer High Power 10” SPL Subwoofer High-Roll Sandwich Surround 63 mm / 2.5” Copper Voice Coil Diameter 250 mm / 10" Voice coil 63 mm Kupfer / 2.5" Copper Power Handling 1200 W SPL Power Impedance 2 x 2 Ohm SPL 85 dB Fs 44.8 Hz

GZPA Reference 2PURE Amplifier 2 Channel High End amplifier - 2700 Watt Max - High-End pure sound quality amplifier - 1 Ohm stabile stereo / 2 Ohm bridged - Symmetrical dual-mono direct-signal layout - Shielded and separated dual power supply - Continuously variable Bias Setting Class AB -> nearly Class A - Adjustable input sensitivity - Soft delayed remote turn-on - Power & Protection indicator - Thermal, over current, speaker short, Speaker DC protection - Temperature-sensitive controlled fan - Plexiglas bottom plate - White LED illumination inside - High quality Rhodium RCA plugs - Selected high-end SANKEN® transistors - Low distortion LM4562 OP with 0.00003% THD+N - Ground Zero exclusive Mundorf Mcap® capacitors - Special made audio-optimized Mundorf secondary capacitors for maximum buffering - Capsuled ALPS potentiometers with channel separated level adjustment and summarize-function - Low-tolerance Vishay Dale emitter-resistors for accurate bias point stabilization - Copper anodized aluminum strand cast heatsink
